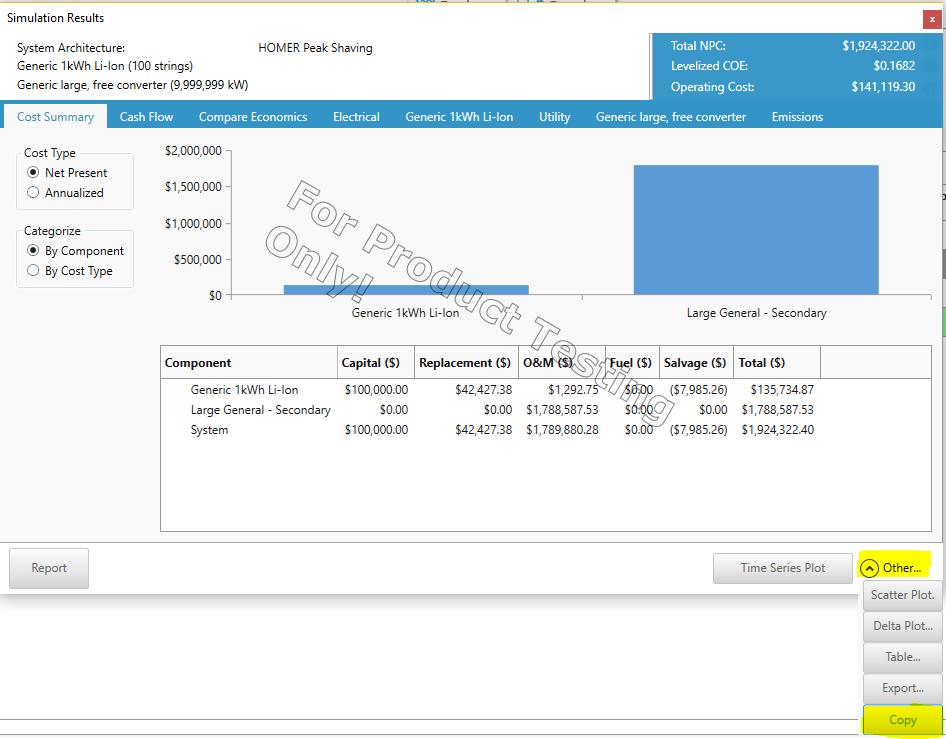

Click the Copy button present in the "Other" button in Simulation Results window to copy the simulation results to the clipboard. (Highlighted in yellow in the image below)

copy_button_update

The results data for this simulation are copied to the clipboard in a format that you can paste into a spreadsheet application like Microsoft Excel (tab-delimited text). The arrangement of the data is described in the table below. The locations described assume that you paste the data beginning with cell A1. Each piece of result data generally appears in the same cell location, even for different simulations or different HOMER models. This makes it easier for other spreadsheets to reference the pasted results data by referencing specific cells.

Spreadsheet Row Number

Contents

1

Title, description, filename

2

Project notes

3

Total NPC

4

LCOE

6-9

System architecture

11-12

Sensitivity case parameters

14-20

Cost summary table (Net present dollars)

22-28

Cost summary table (Annualized dollars)

30-32

Electrical summary

34-36

Other outputs

38-40

Thermal summary

42-46

Fuel summary

48-50

Emissions summary

60-89

Generators

90-109

PVs

130-159

Batteries

160-179

Converter

180-199

Boiler

290-309

Utility

310-319

Thermal load controller
