Creating a Synthetic Load from a Profile

Scroll Prev Top Next More

HOMER Logo

icons8-electrical-threshold-512


Measured load data is seldom available, so users often synthesize load data by specifying typical daily load profiles and adding in some randomness. This process produces one year of hourly load data. Creating a synthetic load from a profile is a quick way to generate a load that can be relatively realistic. On the Electric and Thermal Set Up page, select an option for Peak Month. If you want the load to have a cyclic annual variation, choose January or July as the peak month. Choosing "None" yields an annual profile that is uniform except for random variation.

hgrid_synthetic_load



Peak Month: January

shots_load-create-synthetic-from-profile-annual-jan

Peak Month: July

shots_load-create-synthetic-from-profile-annual-jul

Peak Month: None

shots_load-create-synthetic-from-profile-annual-none

Choose a Profile from the drop-down menu: Residential, Commercial, Industrial, Community, and Blank. Blank is an empty template.

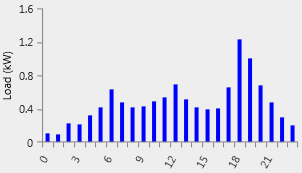

Residential

shots_load-create-synthetic-from-profile-daily-residential

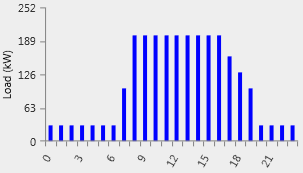

Commercial

shots_load-create-synthetic-from-profile-daily-commercial

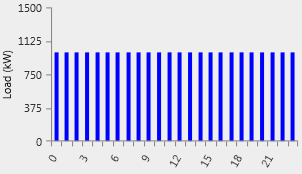

Industrial

shots_load-create-synthetic-from-profile-daily-industrial

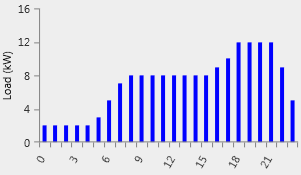

Community

shots_load-create-synthetic-from-profile-daily-community

These load templates have different default overall magnitudes: 11.35, 2,620, 24,000, and 170 kWh/day, respectively. You can easily scale the average load of any of them to fit your application by changing the value for "Scaled Annual Average (kWh/day)".
