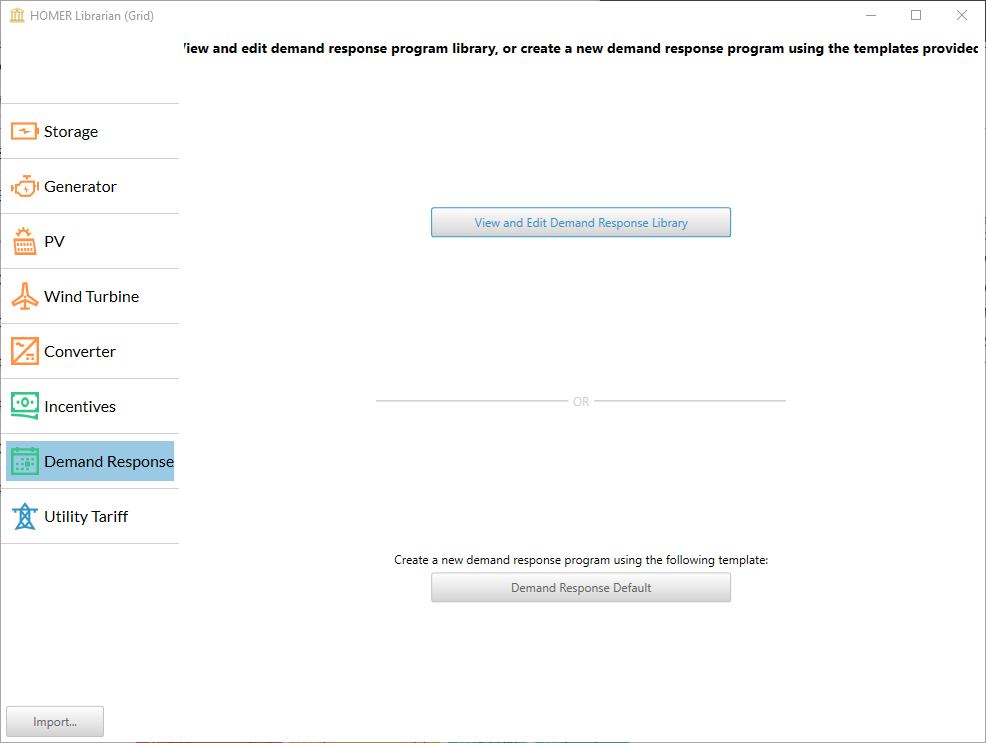

To access the Demand Response Library, select the Library icon library icon found on the upper right hand corner of the main HOMER Grid window. Choose the Demand Response tab as highlighted in blue below.

clip0049

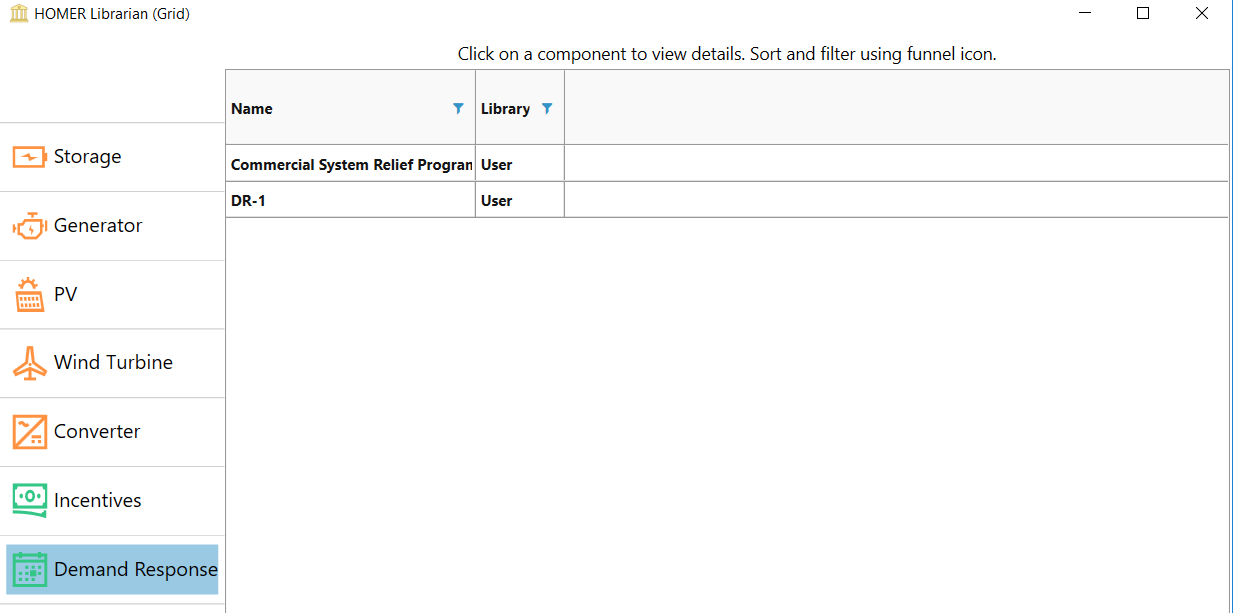

Click View and Edit Demand Response Library to see the list of existing DR programs in the HOMER Library. Select a program from the list to view details. You may also create a new DR program by copying an existing entry and changing the specifications.

clip0050



Once you have selected an item to edit, follow these 4 steps to create a new Demand Response program in the library.



clip0051



1. Enter the name of the demand response program



2. Enter the Demand Reduction Incentive

This is usually provided by the utility -  a certain $ for every kW reduced.



3. Choose a bid type and amount

You next choose a bid type and amount. There are three choices - optimize bid amount, reduce demand, or limit grid purchases to a maximum during an event.

Optimize demand reduction: This is the best choice when you are in an early modeling stage and do not yet have an estimate for a bid amount. HOMER will find the most economical bid amount. Please note that the bid amount is the same for every event within 1 program.

Demand Reduction: Use this to set grid purchases to reduce your baseline load by a set number of kW. If you set this to 50 kW, then during the DR event, the grid purchases will be less than the baseline load by at least 50 kW.

Demand goal: Select this to set an upper limit on the grid purchases during the demand response event, then you choose the third option "Demand goal (reduce-to kW)". For example, if you set this to 50 kW, then the grid purchases will never exceed 50 kW during the DR events.

To serve any un-served load during the event, HOMER will use on-site generation available to it.



4. Choose dates when the utility will declare a Demand Response event

The final step is to choose the dates in which the DR event could occur. You may select one of the two options below.

Allow HOMER to pick random dates in a time period

Pick specific dates on which the events could occur

demandresponse-1



Random Dates

Specify the following inputs.

Name

Description

Season

The timeframe between which the DR events could occur. For example, the events could happen in the summer season where there is a higher chance of peak days

Number of random events

The total number of events that can occur in the season

Allowable days of week

The days of the week, the DR event is likely to occur. Options are: Weekdays, All days, M-F

Random start time range

The range of times that the start time of the DR event could be. For example the DR event could start anytime between 9 am and 5 pm.

Event duration (hours)

The number of hours the DR event would last. The duration should not let the event span multiple days. Adjust your start time range and duration to prevent DR events from spanning multiple days.

Randomize start date/time

If you would like to test sensitivities of start date times, then click on the "Settings" button. Note that any changes made here will have an affect on both outages and demand response.



Specific Dates

Specify the following inputs.

Name

Description

List of Dates

The list of event dates

Start Time

The time every event would start on

Event duration

The number of hours every event in the list would last.

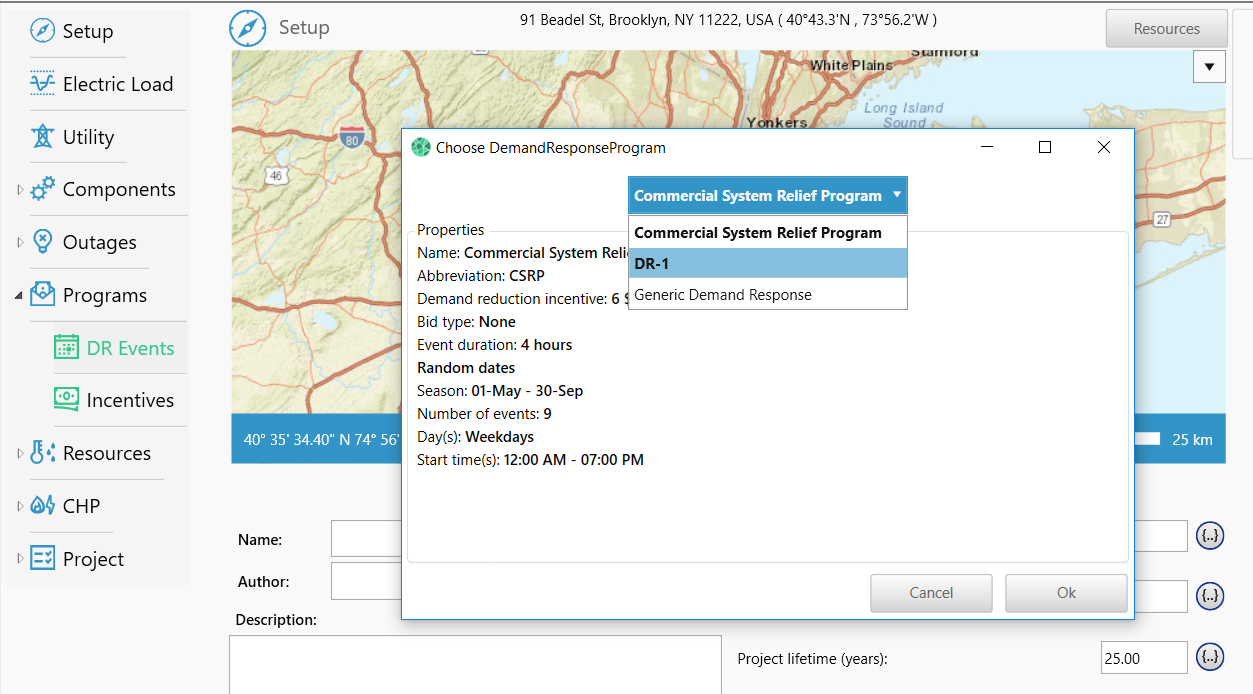

To access the new demand response event in HOMER Grid use the drop down feature. The items shown in bold are created by the user. are user created programs

clip0052
