Fixed Capacity Generator

Scroll Prev Top Next More

HOMER Logo




There are two templates of generators in Homer Grid:

(1) Fixed Size - A generator that uses the "Fixed Size" template will not have a search space.

(2) Size your own - A generator that uses the "Size Your Own" template will include a search space.

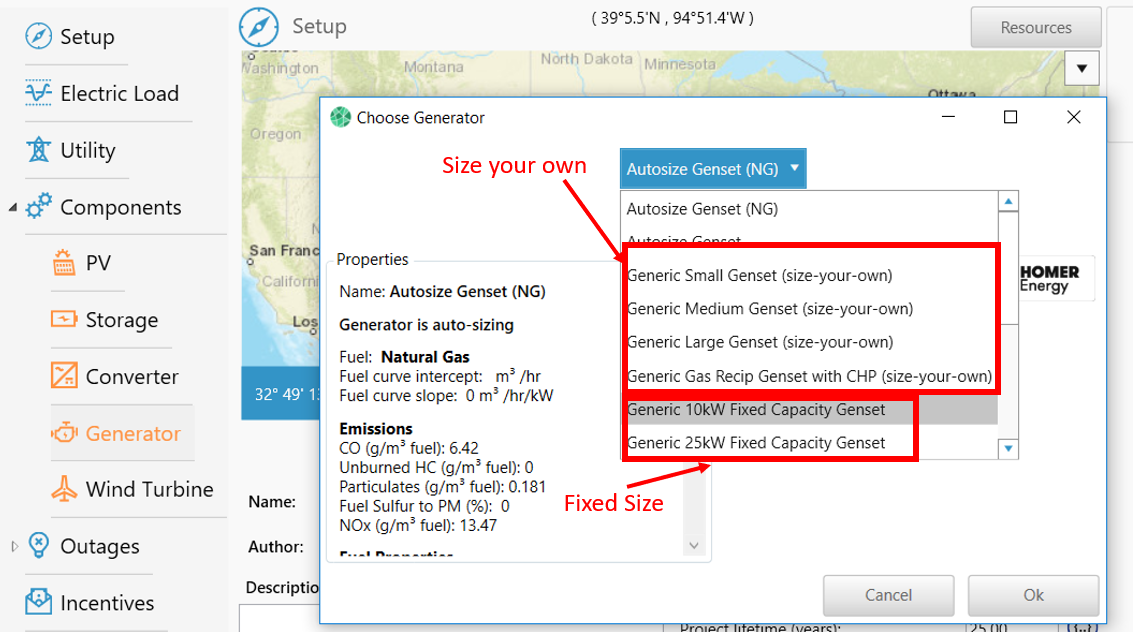

When you are adding a generator to your model, you can differentiate the two templates by the name as shown below:

dropdown-gen

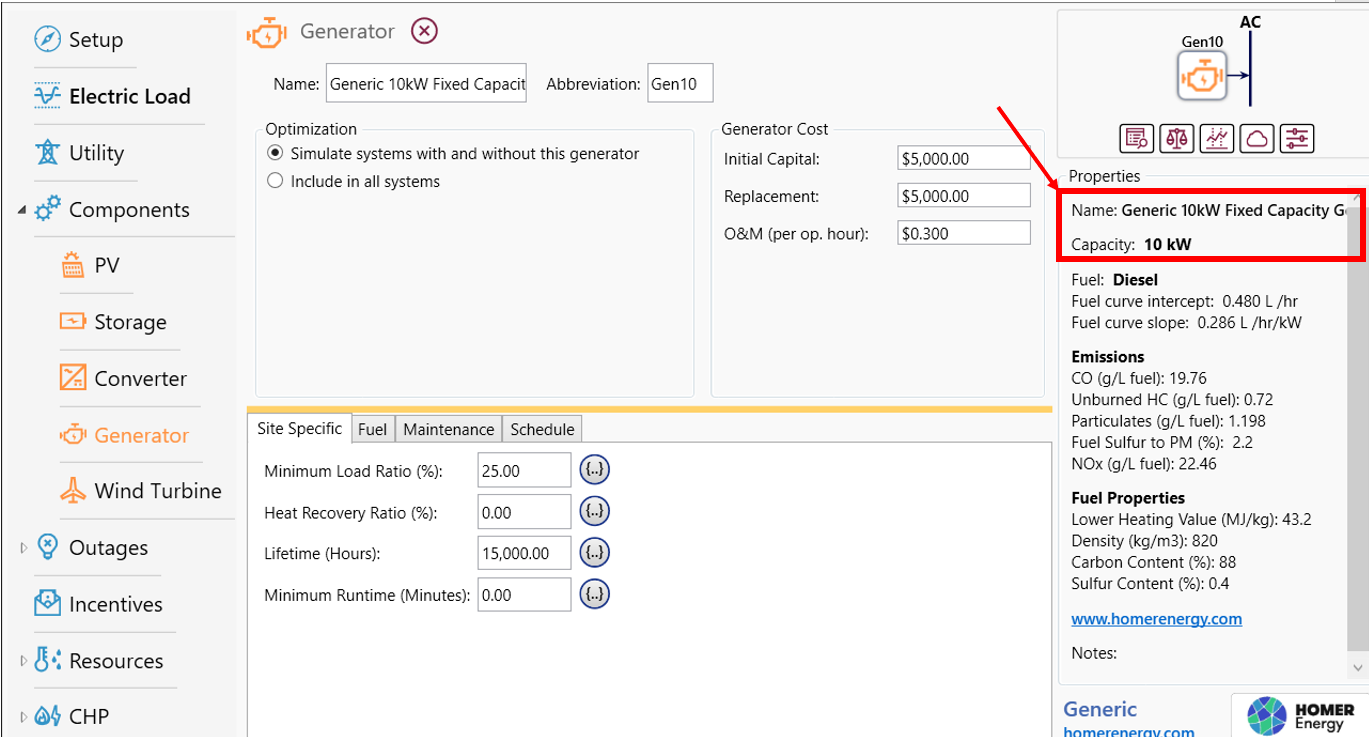

If you chose a Fixed Capacity Genset, then you can see the size listed in the Properties section on the right.

fixedgen2





When you select this template in the library, and are ready to create a fixed capacity generator, make sure to check the " Fixed generator Capacity" and then add the size in the input next to it.

fixedgen







See Also

Size-your-own Generator
