Advanced Load Module

Scroll Prev Top Next More


Users who create models with both AC and DC loads or deferrable loads, such as pumping or HVAC, can use the Advanced Load module. The Advanced Load module consists of a second Electric load and the Deferrable load.

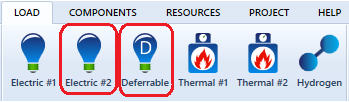

To access the Advanced Load options, use the Electric #2 and Deferrable buttons under the Load tab at the top of the page. The Electric #2 page is the same as the Electric #1 page, described in the Electric Load section of the help.

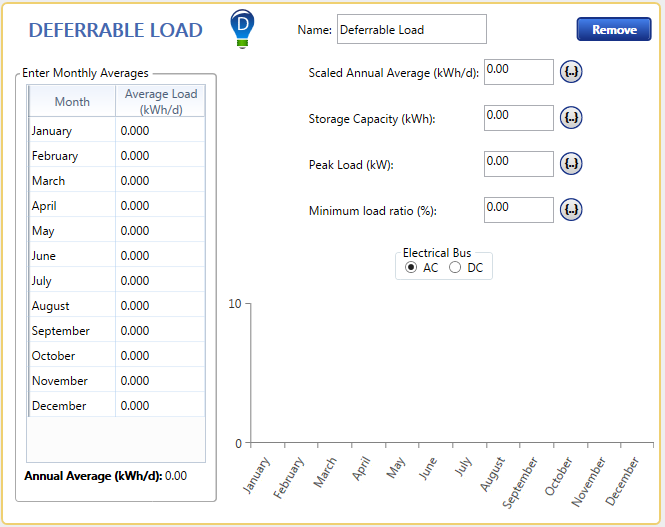

Deferrable loads are loads that require a certain amount of energy, but can wait until power is available instead of needing it at any given moment.


See also

Deferrable Load
