The Electrolyzer page contains the cost and performance inputs for the electrolyzer, which generates hydrogen from electricity.

Costs

In the electrolyzer Costs table, enter the electrolyzer cost curve; i.e., the way the cost varies with size. Click the "Click to add new item" option to add more rows to the table.

shots_reformer_costs

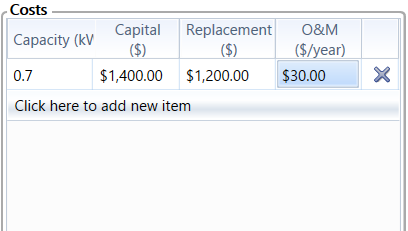

If you have a particular electrolyzer in mind, you can enter its size and cost. In the example above, a 0.7 kW electrolyzer costs $1400 initially, $1200 to replace at the end of its life, and $30/yr for operation and maintenance.

Sizes

In the Capacity Optimization table, enter the electrolyzer sizes you want HOMER to consider as it searches for the optimal system. Be sure to include a zero size if you want to consider systems without an electrolyzer.

shots_electrolyzer_size

HOMER uses the information you entered in the cost table to calculate the costs of each electrolyzer size, interpolating and extrapolating as necessary. You can see the results in the cost curve graph.

Properties

Variable

Description

Lifetime

The number of years the electrolyzer is expected to last before it requires replacement

Efficiency

The energy content (based on the higher heating value) of the hydrogen produced divided by the amount of electricity consumed

Minimum Load Ratio

The minimum power at which the electrolyzer can operate, as a fraction of its rated capacity

Electrical Bus

Whether the electrolyzer consumes alternating current (AC) or direct current (DC) power

Note: To the right of each numerical input is a sensitivity button (shots_sensitivity-button) that allows you to do a sensitivity analysis on that variable. For more information, see Why Would I Do a Sensitivity Analysis?
