Combined Heat and Power Module

Scroll Prev Top Next More

HOMER Logo


The Combined Heat and Power module enables users to model building heating, boilers, cogeneration, and heat recovery, as well as any system that demands or supplies heat energy. The module consists of two Thermal loads, the Boiler component, the Thermal Load Controller component, and the Heat Recovery Ratio parameter on the Generator page.

Thermal Loads

To access the Combined Heat and Power module, first use the Thermal buttons under the Load tab at the top of the page.

THERMAL

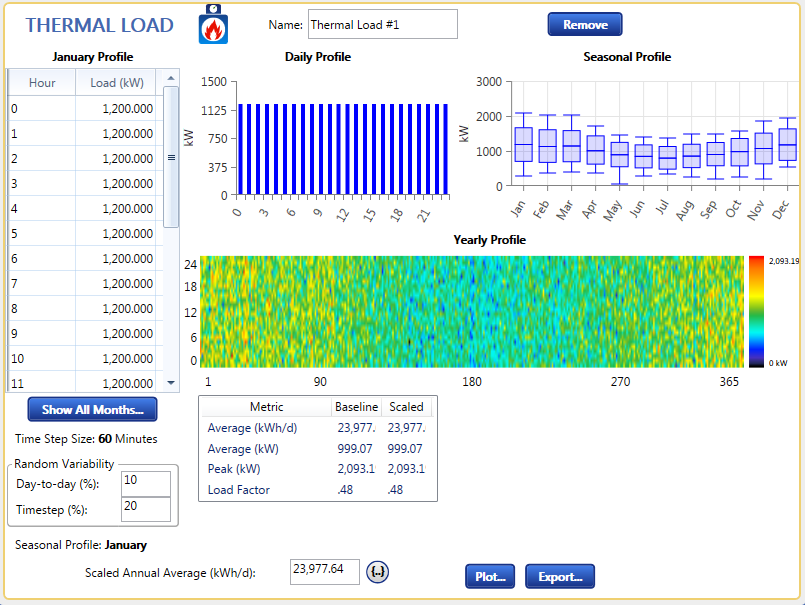

The Thermal Load can model a building, an industrial process, equipment such as a thermal absorption chiller, and any other system that consumes heat energy.

shots_modules-CHP_menu

Boiler and Thermal Load Controller Components

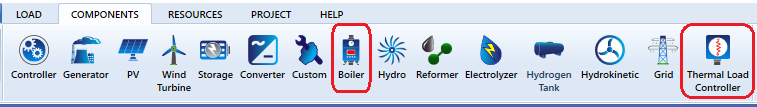

If you have a thermal load, you must add a boiler. The Boiler and Thermal Load Controller buttons are under the Components tab at the top of the page.

shots_modules-CHP_boiler_thermal_load

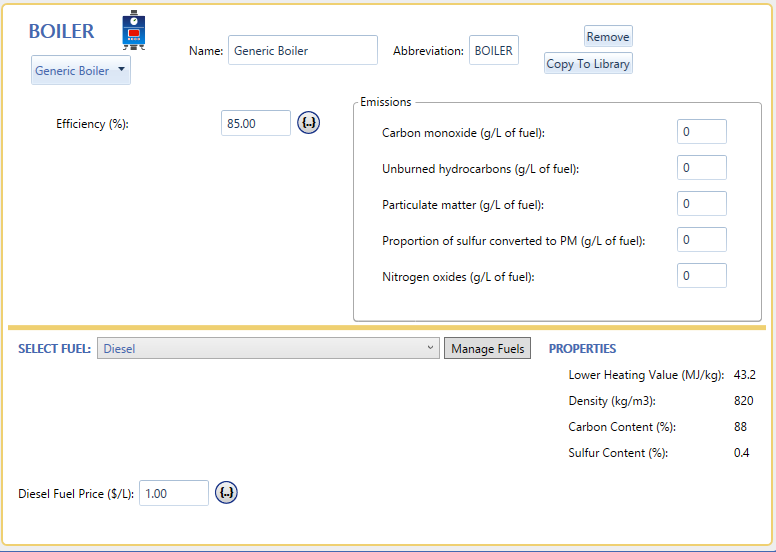

HOMER does not account for the capacity shortage of the thermal load, so any shortage is supplied by the boiler. Therefore, the capacity of the boiler is unlimited.

shots_modules-CHP_boiler_menu

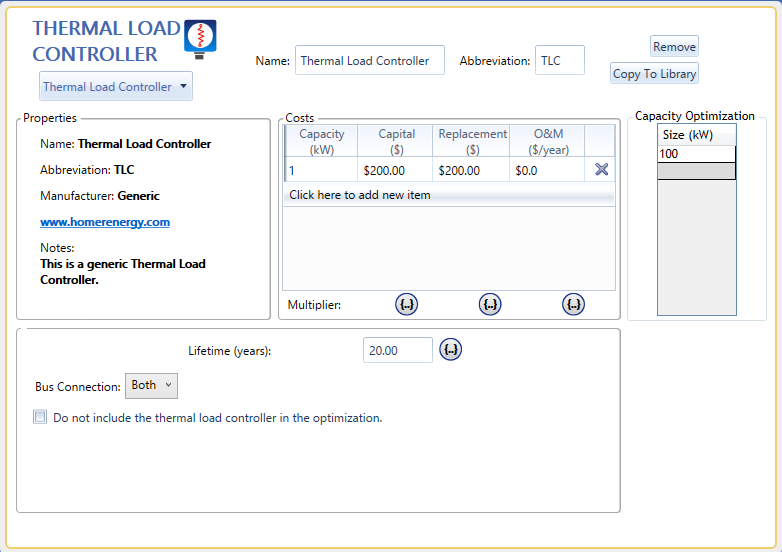

The Thermal Load Controller converts extra electricity into heat. Selecting the "Do not include thermal load controller in the optimization" option ignores the costs of the thermal load controller and allows unlimited capacity.

shots_modules-CHP_tlc_menu

Heat Recovery Ratio

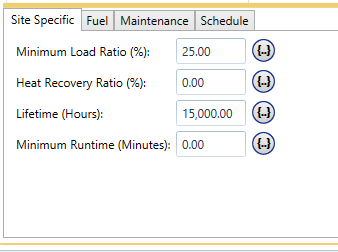

The Combined Heat and Power module's Heat Recovery Ratio parameter is on the Generator page under the Components tab. Under the Site Specific tab at the bottom of the page, set this parameter to a number greater than zero to set up a combined heat and power system.

shots_module-gen

See also

Thermal Load

Generator

Boiler

Thermal Load Controller
