Creating a Synthetic Load from a Profile

Scroll Prev Top Next More

HOMER Logo

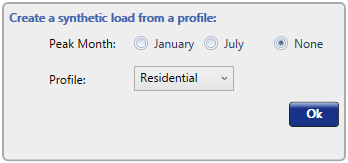

Creating a synthetic load from a profile is a quick way to generate a load that can be relatively realistic. On the Electric, Thermal, or Hydrogen Set Up page, select an option for Peak Month. If you want the load to have a cyclic annual variation, choose January or July as the peak month. Choosing "None" yields an annual profile that is uniform except for random variation.

shots_loads_create_synthetic

Peak Month: January

shots_load-create-synthetic-from-profile-annual-jan

Peak Month: July

shots_load-create-synthetic-from-profile-annual-jul

Peak Month: None

shots_load-create-synthetic-from-profile-annual-none

Choose a Profile from the drop-down menu: Residential, Commercial, Industrial, Community, and Blank. Blank is an empty template.

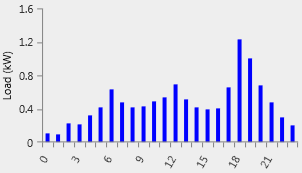

Residential

shots_load-create-synthetic-from-profile-daily-residential

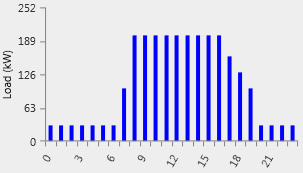

Commercial

shots_load-create-synthetic-from-profile-daily-commercial

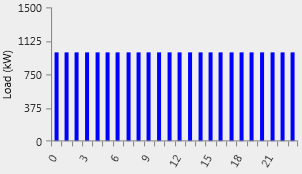

Industrial

shots_load-create-synthetic-from-profile-daily-industrial

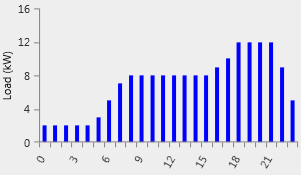

Community

shots_load-create-synthetic-from-profile-daily-community

These load templates have different default overall magnitudes: 11.35, 2,620, 24,000, and 170 kWh/day, respectively. You can easily scale the average load of any of them to fit your application by changing the value for "Scaled Annual Average (kWh/day)".
