Building a tariff is useful in cases that you are unable to find a tariff under the Choose Tariff from Database option. HOMER Grid lets you quickly build a simple tariff using this option. However, if you realize that this option is not suitable for your complex tariff, then you can build a complex tariff using the advanced tariff builder in the Library Editor.

Create a Simple Tariff

A tariff created using this Simple Tariff option:

Can include one energy charge, one demand charge and one fixed charge

Can allow for net metering

Cannot cover tiered rates, time of use rates and other complex rate structures.

To create a simple tariff, follow the below steps.

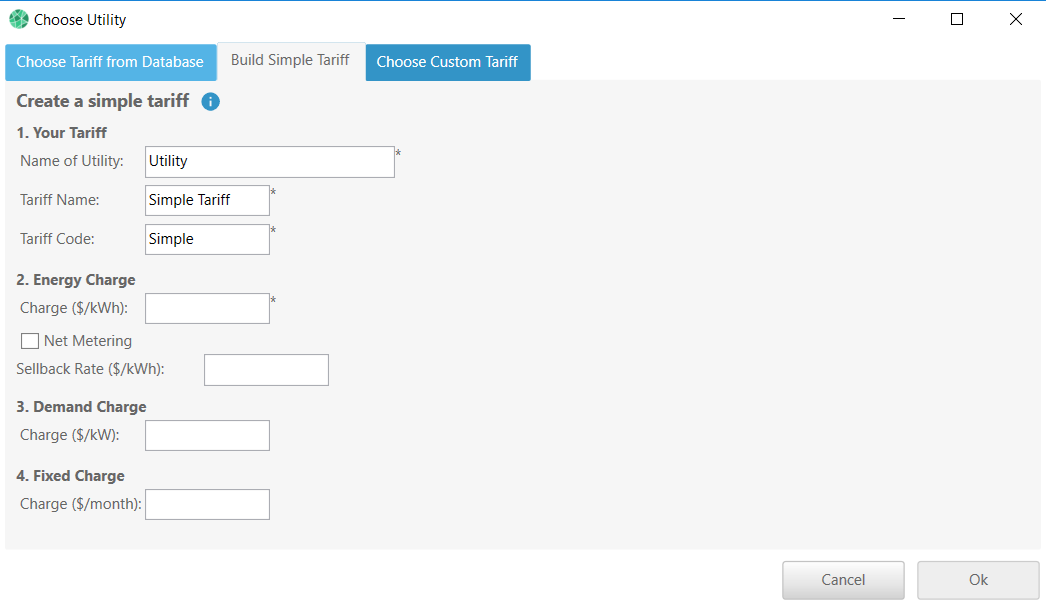

1. Enter the various charges in the tariff.

clip0066



2. Click Ok.



Build a custom, detailed tariff

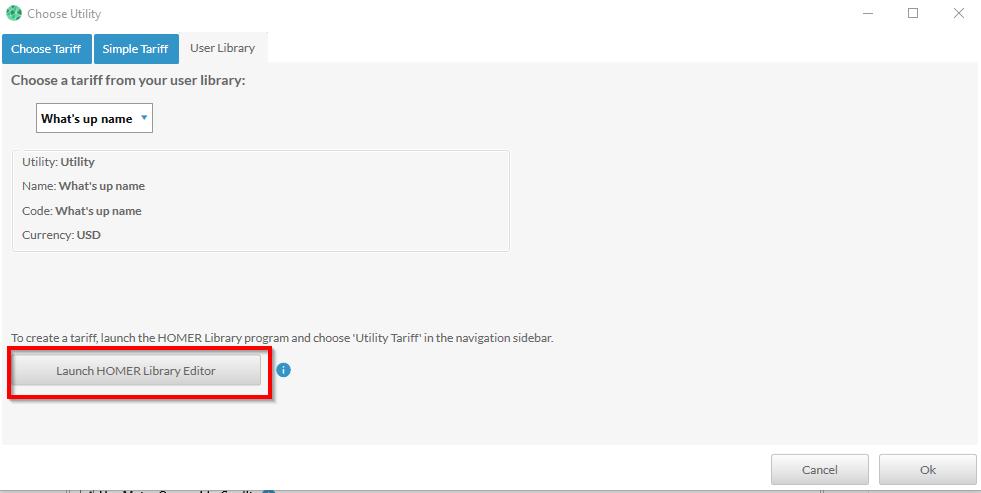

If you realize that your tariff is a lot more complex and cannot be built with this option, then select the User Library tab and and choose the "Launch HOMER Tariff Builder Application" button. You may also access the tariff builder from the library icon found on the upper right hand corner of the main window.

HOMER Library Editor

See also

How HOMER Calculates Emissions

Utility Tariffs Library
