Compare Tariffs

Scroll Prev Top Next More

HOMER Logo

icons8-transmission-tower-512


HOMER Grid allows users to run the model with multiple tariffs. This feature can be used to compare the savings by shifting from one tariff to another. The savings could be how much the customer would have paid for energy without solar and storage versus how much they actually did pay after solar and storage was installed. These is especially relevant to Utilities that have different tariffs for customers who have solar installed in their homes/businesses.

For this example let these be the 2 tariffs we want to compare:

Pre-Solar Tariff:  A-10-TOU from Pacific Gas & Electric

Post-Solar Tariff: A-10-TOU-NEM2 from Pacific Gas & Electric

Compare 2 tariffs



To include both these tariffs in the model, follow the below steps:

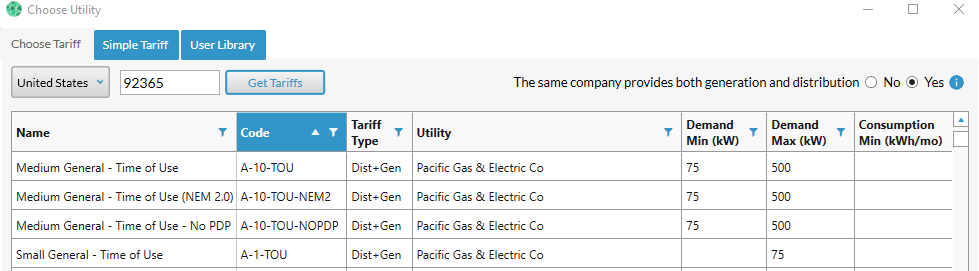

Step 1: Select the pre-solar tariff

Compare Medium Tariffs1

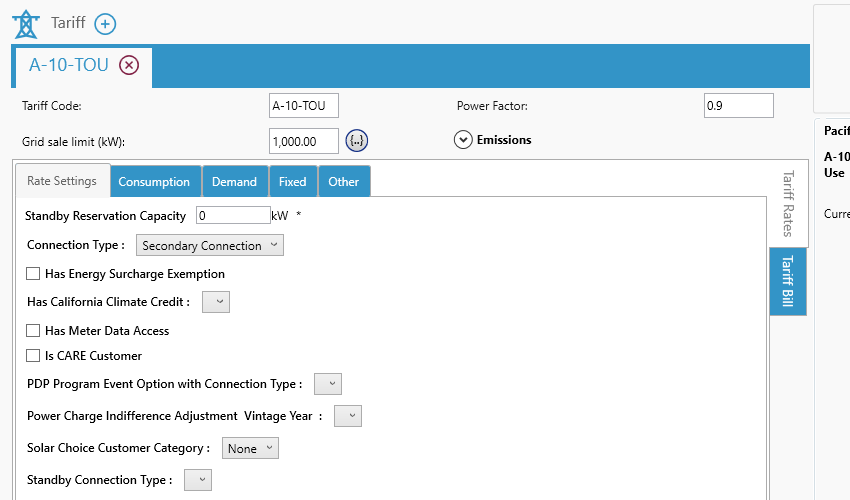

Step 2: You will see the tariff information page as shown below

Compare medium tariffs2

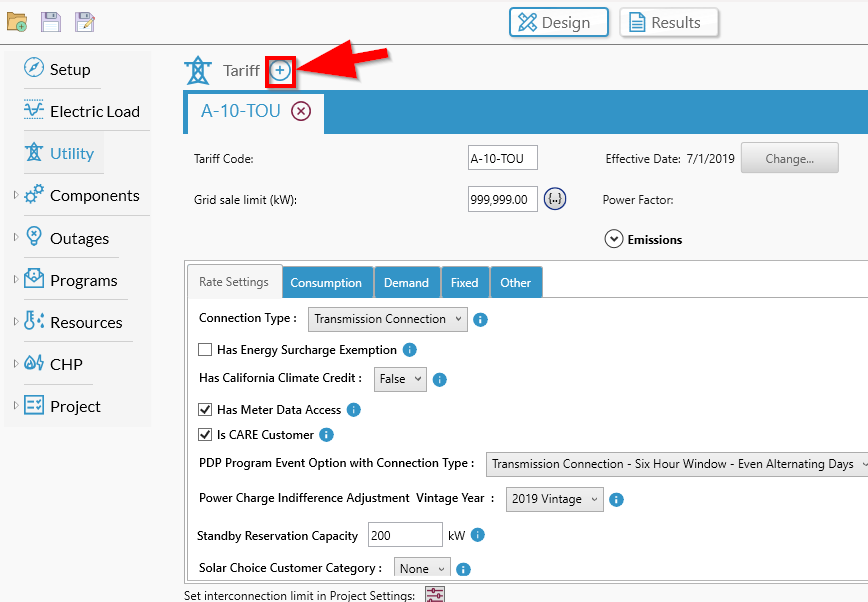

Step 3: Click on blue plus icon next to Tariff (shown below)Compare tariffs3

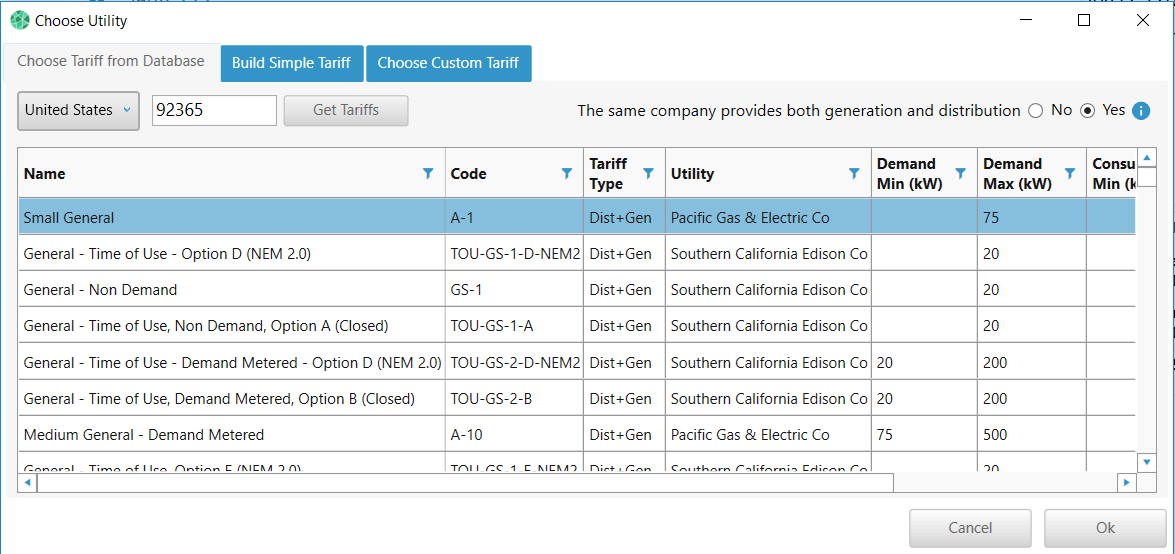

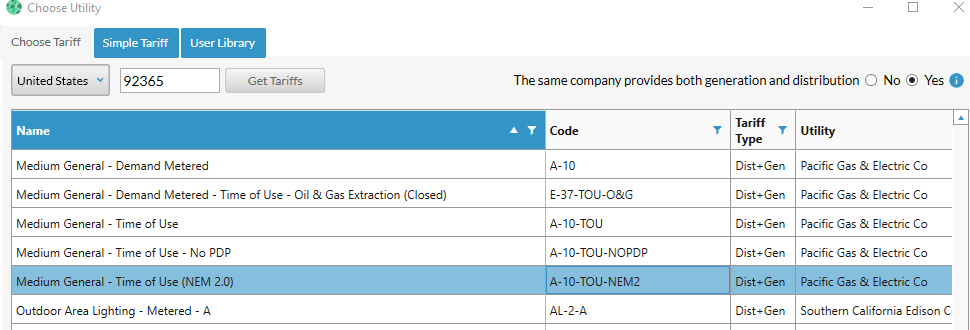

Step 4: Select the post solar tariff

Compare 4



Step 5:  Select "Current Tariff"

If the second tariff you entered is the tariff the customer is currently on, then check the box that says "Current Tariff" under the schematic on the right side of the page.

Current tariff

Step 6: Edit results

In the results, make sure to select a simulation which has the pre-solar tariff and no solar panels. This is an additional check that the user needs to do manually, since HOMER Grid is going to simulate all combinations of components with each tariff.
