Demand Response

Scroll Prev Top Next More

HOMER Logo

icons8-event-512


Utilities use Demand Reponse programs to incentivize end-use customers to shift or lower their electricity usage during peak periods.

Along with other programs such as time-of-use rates, these programs allow utilities to avoid investments in generations for peak load events ("peaker plants').

Contents

1.How Demand Response works

a.How is Load Reduction calculated

b.Demand Response Bids

2.Modeling Demand Response in HOMER Grid

a.Step 0: Add a Demand Response item from Library

b.Step 1: Enter Demand Reduction Incentive

c.Step 2: Choose bid amount

d.Step 3:Choose dates when the Utility will declare a Demand Response event

3.Stacking Multiple Demand Response Programs in HOMER Grid



How Demand Response works

If a utility forecasts an unusually high peak in the next few hours/days, they will send out a signal to their demand response customers. This signal might be in the form of a text message or an email. It will normally include details such as when the demand response event (DR event) is likely to occur and for how long it will last. Customers can then prepare to reduce their grid purchases during those hours. They could do so in the following ways:

Lowering their consumption during that time period

Shifting consumption to either before or after the demand response event

Temporarily utilizing on-site generation in place of energy from the grid



If the end-use customer managed to successfully reduce their demand during the event, then the utility would pay their customer a pre-approved amount for every kW reduced. This is known as the demand reduction incentive. The amount will differ between utilities and areas of service. It can be set by policy or by the utility.



Demand response programs are usually handled through third-party companies approved by each utility. These 3rd party companies are called Load Aggregators, Curtailment Service Providers, or Demand Service Providers.





demandresponse-3



How is Load Reduction calculated

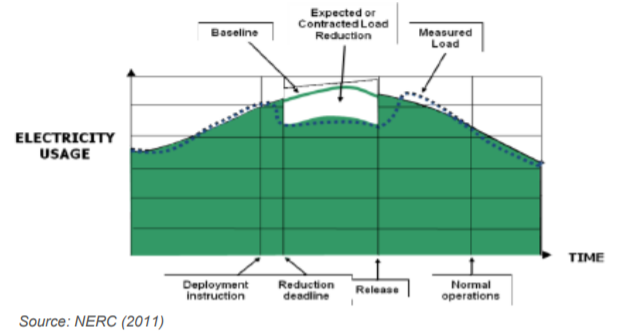

To accurately calculate the amount of load reduction, the utility must first measure and record the customer's baseline load. Each utility has their own process of monitoring the customer's load a few days prior to the event. Any grid purchases during the demand response event is subtracted from this baseline to calculate the load reduction. Customers participating in demand response programs have to install a special billing meter than can track and record baseline usage.







baseline



Source: https://www.synapse-energy.com/sites/default/files/SynapseReport.2013-03.RAP_.US-Demand-Response.12-080.pdf

Demand Response Bids

In some demand response programs, end-use customers have to pledge the amount of load reduction. This "Bid" (kW) is a contract that the customer has to fulfill during the demand response event. For example, if the customer promised to reduce 50 kW during a demand response event, then their utility is going to check if the load reduction matched the bid of 50 kW or more. If this bid is not met during the event, some utilities might charge a penalty while others might force a customer to reduce their bid for the next year, resulting in lower payments. Determining this bid amount is important because under certain demand response programs customers may be reimbursed whether the utility calls an event or not.

How to model Demand Response in HOMER Grid



HOMER Grid allows you to model demand response events, and answer the following questions:

If a utility has multiple DR programs, how do these programs differ in savings? In which programs should you enroll?

How much should you bid/pledge to reduce during an event?

What size battery/generator should you invest in to reduce grid purchases?



Step 0: Add a Demand Response item from Library

Click on Programs->DR Events as shown in the left navigation tree. This opens a pop-up window with a list of Demand Response programs in your library. You will get a "Generic Demand Response" to begin with. You can create and save new demand response programs in the Demand Response Library.

clip0047



Step 1: Enter Demand Reduction Incentive

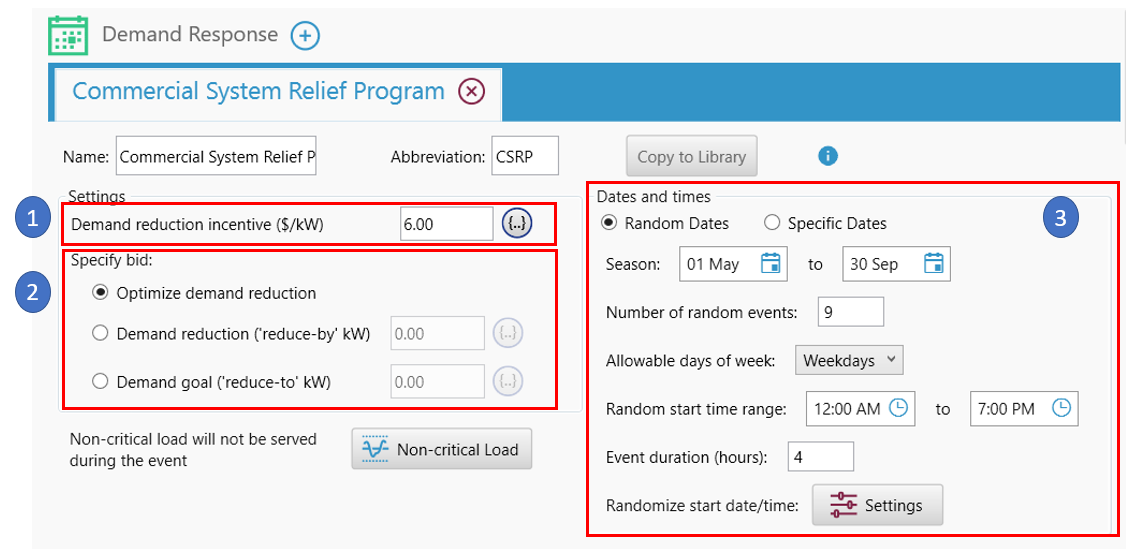

The first step is to enter the demand reduction incentive. It is usually provided by the utility, a certain $ for every kW reduced.



clip0058









Step 2: Choose bid type and amount

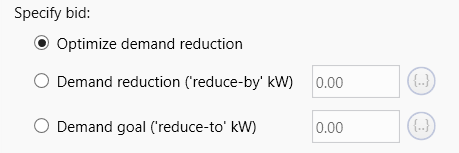

You next choose a bid type and amount. There are three choices - optimize bid amount, reduce demand, or limit grid purchases to a maximum during an event.

Optimize demand reduction: This is the best choice when you are in an early modeling stage and do not yet have an estimate for a bid amount. HOMER will find the most economical bid amount. Please note that the bid amount is the same for every event within 1 program.

Demand Reduction: Use this to set grid purchases to reduce your baseline load by a set number of kW. If you set this to 50 kW, then during the DR event, the grid purchases will be less than the baseline load by at least 50 kW.

Demand goal: Select this to set an upper limit on the grid purchases during the demand response event, then you choose the third option "Demand goal (reduce-to kW)". For example, if you set this to 50 kW, then the grid purchases will never exceed 50 kW during the DR events.

To serve any un-served load during the event, HOMER will use on-site generation available to it.



bid



Step 3: Choose dates when the Utility will declare a Demand Response event



The final step is to choose the dates in which the DR event could occur. HOMER Grid users have two options available to them:

- Allow HOMER to pick random dates in a timeperiod

- Specify dates on which the events could occur

demandresponse-1



Random Dates:

Under this option you need to specify the following:

Name

Description

Season

The timeframe between which the DR events could occur. For example, the events could happen in the summer season where there is a higher chance of peak days

Number of random events

The total number of events that can occur in the season

Allowable days of week

The days of the week, the DR agreement may apply. Options are either only or all days, including weekends.

Random start time range

The range of times during which the DR event may begin. For example the DR event could start anytime between 9 am and 5 pm.

Event duration (hours)

The number of hours during which the DR event would last. The duration should not let the event span multiple days. Adjust the start time range and duration to prevent DR events from spanning multiple days.

Randomize start date/time

To test sensitivities of start date times, click on the "Settings" button and look for the "Random Seeds" box. Note that any changes made here will have an affect on both outages and demand response.



Specific Dates:

Under this option you need to specify the following:

Name

Description

List of Dates

The list of event dates

Start Time

The time every event would start on

Event duration

The number of hours every event in the list would last.





Stacking Multiple Demand Response Programs in HOMER Grid

Some utilities offer multiple demand response programs. You can add multiple programs in the same model allowing you to compare them in terms of potential savings and cost.

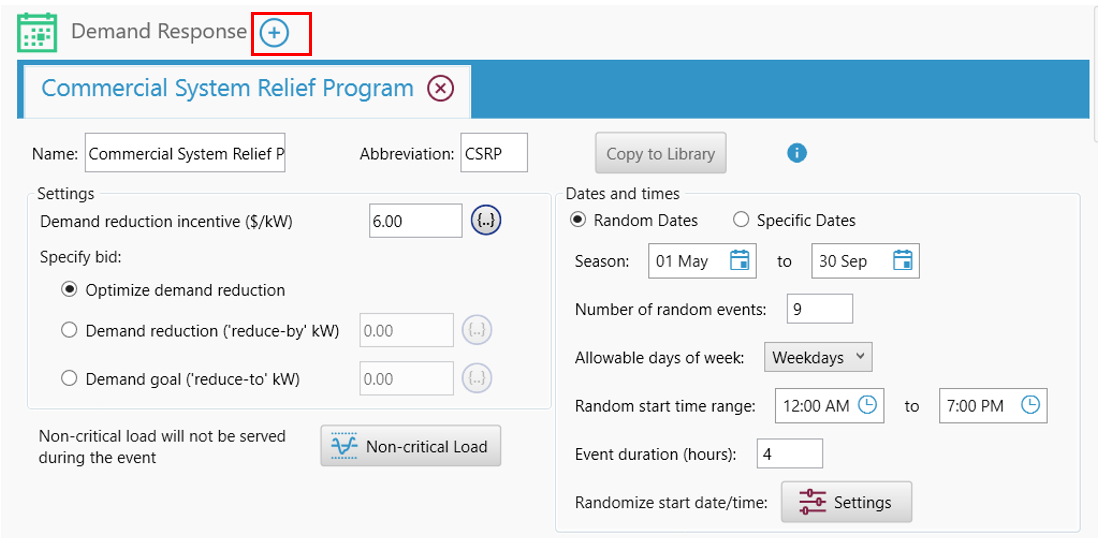

Add a new Demand Response program by clicking on the plus button as highlighted below -

clip0059
